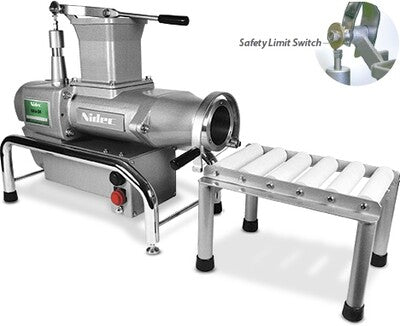

Pugmill, Shimpo #NRA04

The NRA-04 pug mill features newly designed twin augers and a forceful direct gear driven motor. The high quality wedging and extruding capacity obtained makes this compact pug mill one of the most efficient and competitive on the market.

Features

• • Direct gear driven motor provides maximum mechanical force for blending, requiring minimum operator effort
  • High extruding capacity; twin stainless steel mixing augers blend and extrude up to 880 lbs per hour
  • Dual safety system; limit switch automatically cuts power to pugmill when augers are exposed. Stop button allows for immediate operator control
  • High Quality Wedging Function; twin augers typically found only in large industrial machines, increase wedging capacity and produces practically air-free clay without a vacuum
  • Includes a clay cut-off wire and clay receiving table
  • 5 year warranty

  • Motor	½ HP, 200W, 115 VAC, 60Hz single phase
    Extruding Capacity	880 lbs per hour
    Nozzle Diameter	3 ½” diameter
    Hopper Size	3 ½” x 3 ½”
    Dimensions	25 ½” x 12″ x 22 ½”
    Weight	170 lbs
    Ship Weight	220 lbs
